DFW-12 outdoor switching station (cable distribution box)
It uses prefabricated touchable live silicone-rubber cable connectors in a fully sealed, fully insulated and maintenance-free design. The compact, attractive double-wall stainless-steel enclosure provides dependable personnel protection and a service life of more than 20 years.
DFW-12 outdoor switching station (cable distribution box)
It uses prefabricated touchable live silicone-rubber cable connectors in a fully sealed, fully insulated and maintenance-free design. The compact, attractive double-wall stainless-steel enclosure provides dependable personnel protection and a service life of more than 20 years.
The company's compact substations, user-side energy storage systems, complete high- and low-voltage switchgear, small distribution enclosures, compact busways, cable trays, EV chargers and industrial automation control equipment are well regarded across China and exported overseas.
Product description
Functional characteristics
It uses prefabricated touchable live silicone-rubber cable connectors in a fully sealed, fully insulated and maintenance-free design. The compact, attractive double-wall stainless-steel enclosure provides dependable personnel protection and a service life of more than 20 years.
Without prejudice to the operation of the main network, regional power outages will be effected and reduced.
One or more SF6 load-break switches can be fitted. Flexible wiring arrangements support up to 8 outgoing branch circuits.
Optional surge arresters, short-circuit fault indicators and current-limiting fuses meet different user requirements.
Scope of application
It is widely used in densely populated urban areas such as urban grid upgrading, residential neighbourhoods and business centres.
Conditions of use and environment
Altitude: no more than 2500m.
Ambient temperature: -45°C to +45°C.
Relative humidity: The daily average is not greater than 95% and the monthly average is not greater than 90%.
Places of installation: Fire-free, explosive hazard, electrical dust, chemical corrosive gases and severe vibrations, if the above conditions are exceeded, the user may consult with our company.
Model designation

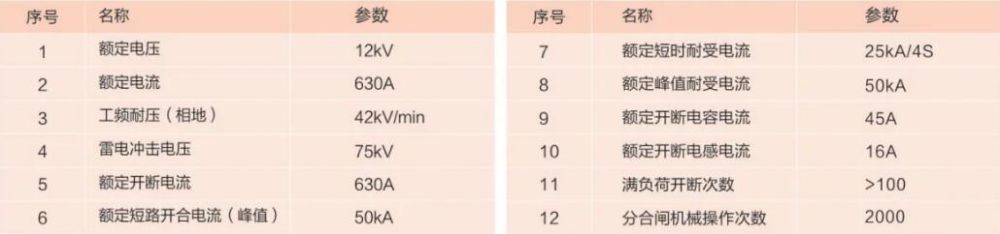

DFW technical parameters

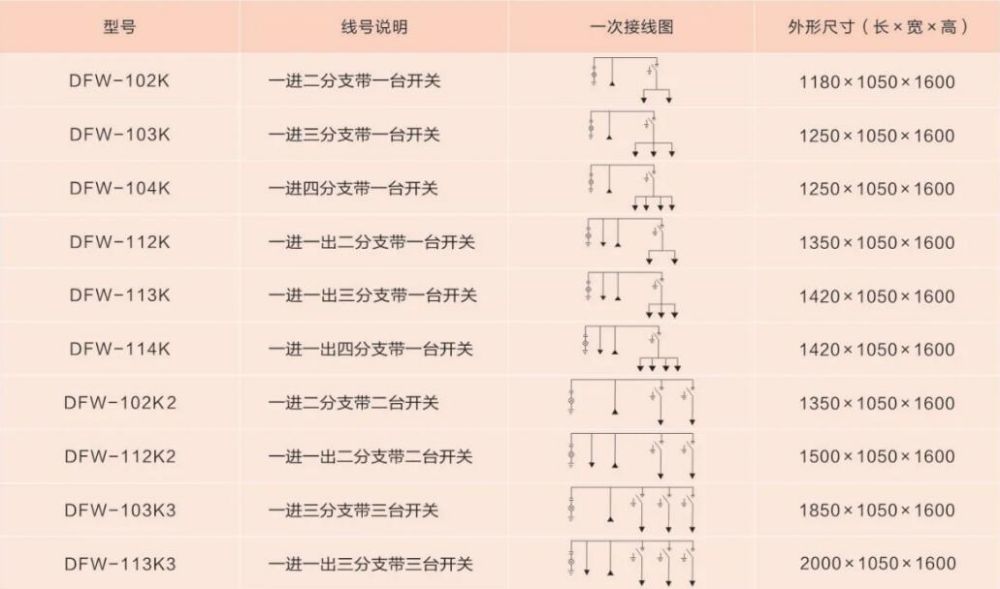

Typical DFW connection scheme

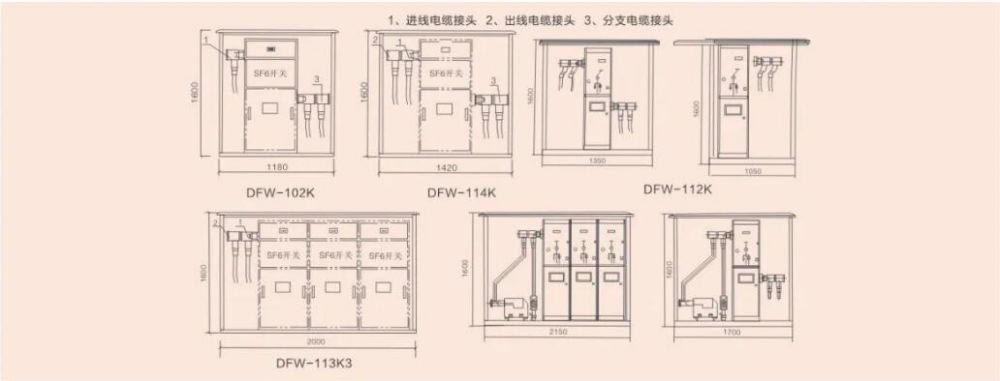

Exterior diagram
