DFW-12 cable distribution box
The DFW-12 series cable compartments are outdoorly designed, fully sealed, and cabinet protection up to IP33. Cable dockings are made of stainless steel material, outer casings are made of 2 mm of high-quality stainless steel plates, and the contents of the boxes are separated from the ceilings of the cables into the mains chamber and cable silos.
DFW-12 cable distribution box
The DFW-12 series cable compartments are outdoorly designed, fully sealed, and cabinet protection up to IP33. Cable dockings are made of stainless steel material, outer casings are made of 2 mm of high-quality stainless steel plates, and the contents of the boxes are separated from the ceilings of the cables into the mains chamber and cable silos.
The company's compact substations, user-side energy storage systems, complete high- and low-voltage switchgear, small distribution enclosures, compact busways, cable trays, EV chargers and industrial automation control equipment are well regarded across China and exported overseas.
Product description
The DFW-12 series cable compartments are outdoorly designed, fully sealed, and cabinet protection up to IP33. Cable dockings are made of stainless steel material, outer casings are made of 2 mm of high-quality stainless steel plates, and the contents of the boxes are separated from the ceilings of the cables into the mains chamber and cable silos.
The busbar compartment is a sealed chamber made from 2mm steel sheet. Cable-connector supports in its upper section carry bushings that secure the connectors, with 180mm phase spacing. In versions with surge arresters, each arrester is fitted at the rear of the cable connector. Short-circuit indicators and live-voltage indicators are also installed in this compartment. All live components are fully insulated with an external silicone-rubber covering. The cable compartment below provides the cable entry and exit route and contains cable clamps and earthing terminals.
Model designation
Conditions of use and environment
Altitude: no more than 2500m.
Ambient temperature: -45°C to +45°C.
Installation sites: fire-free, explosive hazard, electrical dust, chemical corrosive gases and places of intense vibration.
If the above conditions are exceeded, the user may consult with our company.
Relative humidity: The daily average is not greater than 95% and the monthly average is not greater than 90%.
Structure description
The DFW-12 series cable compartments are outdoorly designed, fully sealed, and cabinet protection up to IP33. Cable dockings are made of stainless steel material, outer casings are made of 2 mm of high-quality stainless steel plates, and the contents of the boxes are separated from the ceilings of the cables into the mains chamber and cable silos.
The busbar compartment is a sealed chamber made from 2mm steel sheet. Cable-connector supports in its upper section carry bushings that secure the connectors, with 180mm phase spacing. In versions with surge arresters, each arrester is fitted at the rear of the cable connector. Short-circuit indicators and live-voltage indicators are also installed in this compartment. All live components are fully insulated with an external silicone-rubber covering. The cable compartment below provides the cable entry and exit route and contains cable clamps and earthing terminals.
Functions and characteristics
1: Full insulation, complete sealing, which guarantees personal safety.
2: Outdoor design; resistant to dust, moisture, flooding and corrosion, with strong environmental adaptability.
3: The combination is flexible, with access routes ranging from two to six, meeting multiple connectivity requirements.
4: Small size, compact structure, exterior beauty, simple installation, no maintenance.
5: Optional live-voltage indicator.
6: Short circuit indicator.
7: Optional surge arrester.

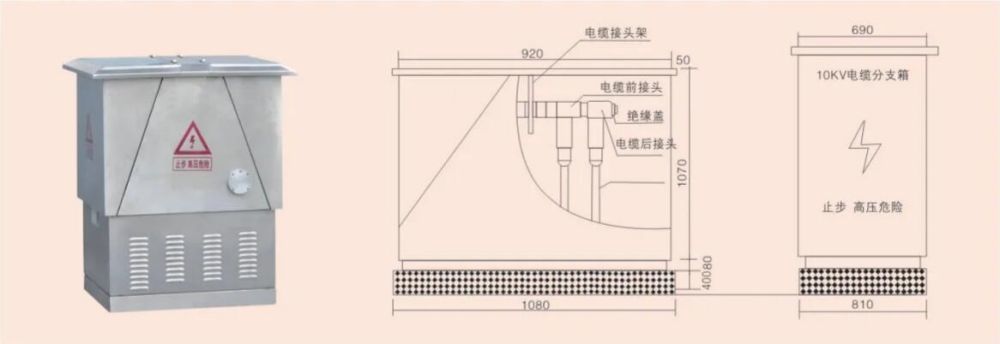

Product Appearance

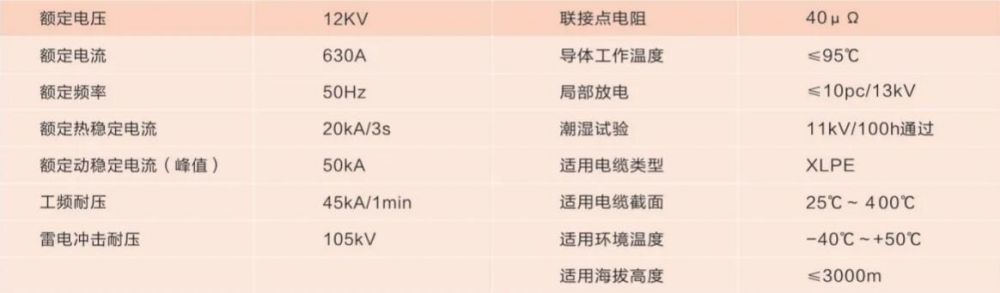

Main technical parameters

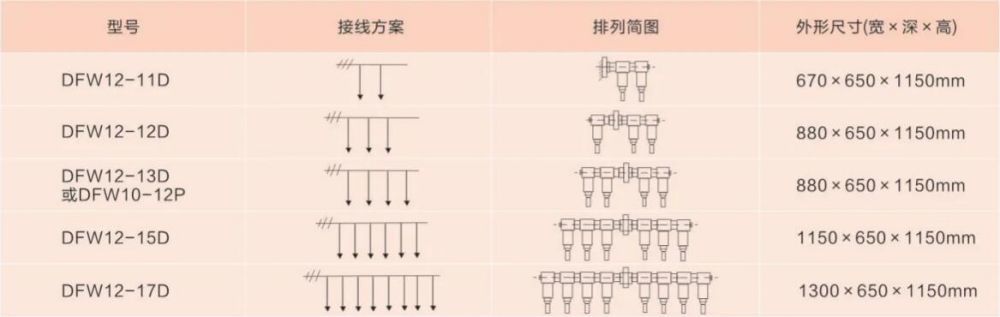

Connecting programme
