ZP1 electricity meter box
ZP1 spreadsheets are electrical metering devices applicable to dwellings, office buildings, shops and factories, and the series is open and closed to users. Box materials use stainless steel, zinc plating, plastics, etc. The product is designed for a box of multi-surface structures, which are safe and reliable, each of which is equipped with a visual window and an exit switch, with a centralized copying, control, ease of post-maintenance, exterior appearance, and can also be designed according to the distribution requirements of the user.
ZP1 electricity meter box
ZP1 spreadsheets are electrical metering devices applicable to dwellings, office buildings, shops and factories, and the series is open and closed to users. Box materials use stainless steel, zinc plating, plastics, etc. The product is designed for a box of multi-surface structures, which are safe and reliable, each of which is equipped with a visual window and an exit switch, with a centralized copying, control, ease of post-maintenance, exterior appearance, and can also be designed according to the distribution requirements of the user.
The company's compact substations, user-side energy storage systems, complete high- and low-voltage switchgear, small distribution enclosures, compact busways, cable trays, EV chargers and industrial automation control equipment are well regarded across China and exported overseas.
Product description
ZP1 spreadsheets are electrical metering devices applicable to dwellings, office buildings, shops and factories, and the series is open and closed to users. Box materials use stainless steel, zinc plating, plastics, etc. The product is designed for a box of multi-surface structures, which are safe and reliable, each of which is equipped with a visual window and an exit switch, with a centralized copying, control, ease of post-maintenance, exterior appearance, and can also be designed according to the distribution requirements of the user.
Environmental conditions for use
1. Ambient temperature: -40°C to +80°C, with a 24-hour average not exceeding 35°C.
2. Air is clean, with a relative temperature not exceeding 80% at 40°C and a higher relative temperature at lower temperatures.
Main technical parameters for products
1. Rated main-busbar current In: 225A-10A.
2. Main carrier rated short-term resistance to electricity current Icw:30KA.
3. Insulated electrical resistance: not less than 20M.
4. Rating insulation voltage UI:800V.
5. Frequency: 50Hz or 60Hz.
6 Safety protection level IP:43.
Scope of application of products
The ZP1 meter-box range includes single-phase and three-phase boxes for AC 50Hz supply systems, with rated operating voltages of 220V, 380V, 690 and rated currents of 10A-225A. They provide metering, control and management of single-phase and power electricity.
Product structure

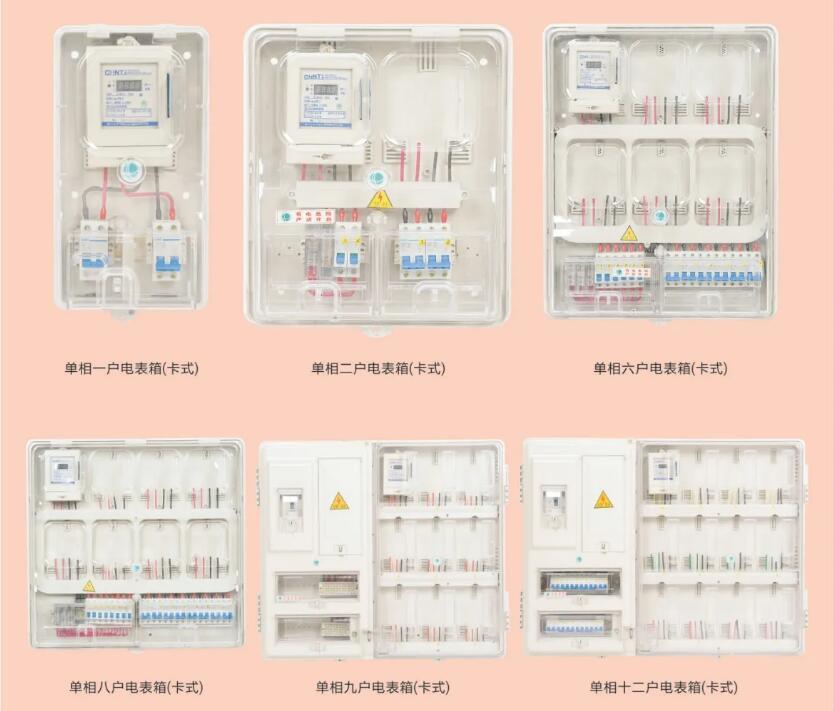

The main structural components are transparency masks, caps, installed tracks, conductive chargers, wires and electrical switches. The internal electrical switches are all electrical appliances with a width of 9 mm and are installed in top-hatted orbits. They can be assembled as needed, are easily dismantled, the switch elements are exposed with handles, electrical and other components are covered within the upper covers, doors are opened for easy operation and safe use. Both the upper and lower sides of the box are equipped with access points to facilitate the connection. Installation is done by installing, embedding and embedding walls.
