PZ30 modular terminal distribution assembly

The PZ30 digitized terminal combination is a device for the installation of a combination of appliances whose main features are the mathematicalization of the size of the appliances used, the installation of orbiting, the artisticization of the outer form, and the security of their use, which has been widely applied at home and abroad.

PZ30 terminal combination appliances are used for rated voltages of 220 V or 380 V, which are dark at the end of a single three-stage or three-phase five-line single-line or load total currents of not more than 100 A, as a set of equipment to protect overloads, short circuits, passings and leaks in the use of electrical equipment. It is widely used in high-rise buildings, homes, stations, ports, airports, hospitals, cinemas, large commercial networks and mining enterprises.

The main uses are:

1. Provides a connection to the power supply for portable electrical appliances.

2. Load circuits for rated working voltage 220V-380V, 50Hz, rated working current to 16A.

3. Used with modular terminal assemblies, this product serves high-rise buildings, industrial and mining facilities, stations, ports, hospitals, shops, laboratories and residential premises.

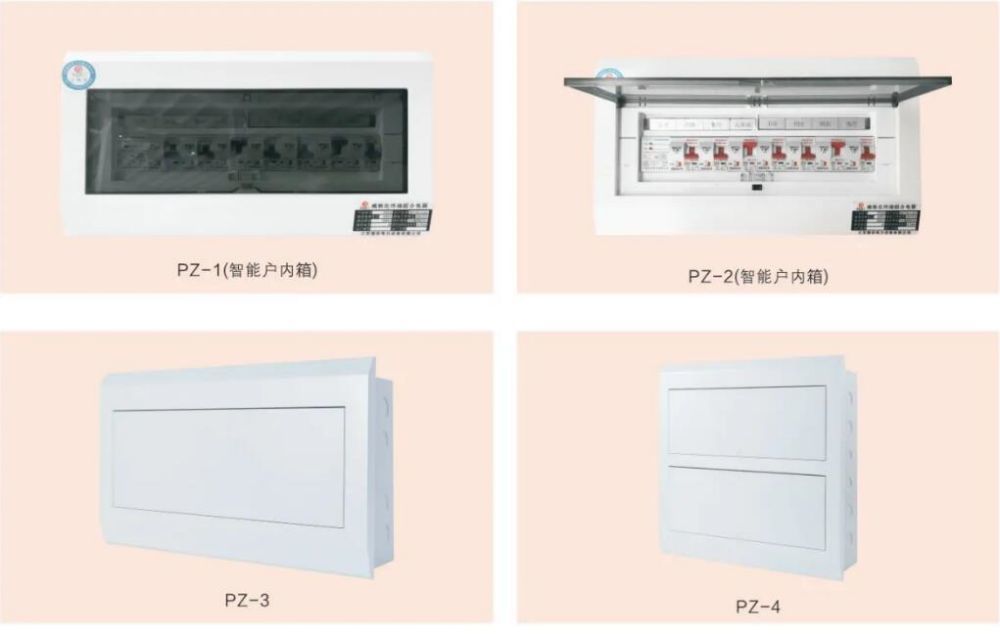

The main structural components of the PZ30 terminal combination of appliances are transparent masks, caps, boxes, installed tracks, conductors, circuits, cords and electrical switches. The incorporated electrical switch elements are all electrical appliances with a width of 9 mm and are installed in top-cap orbits. They can be assembled as needed, are easily dismantled, the handle of the switch element is exposed, electrical and other components are covered, doors are opened for easy operation, and are used safely. Up and down the box, the right, the left and the back are provided with access points to facilitate the connection.
